• Flexibility for envelop type and rigid for leaf type
• Low electrical resistance
• Thinner back web
• Higher porosity
• Smaller pore size
• Good acid displacement
PRODUCT FEATURES
Made from UHMWPE, amorphour silica, and specially formulated oil
Backweb thickness from 200-250μm
With or without glass mat

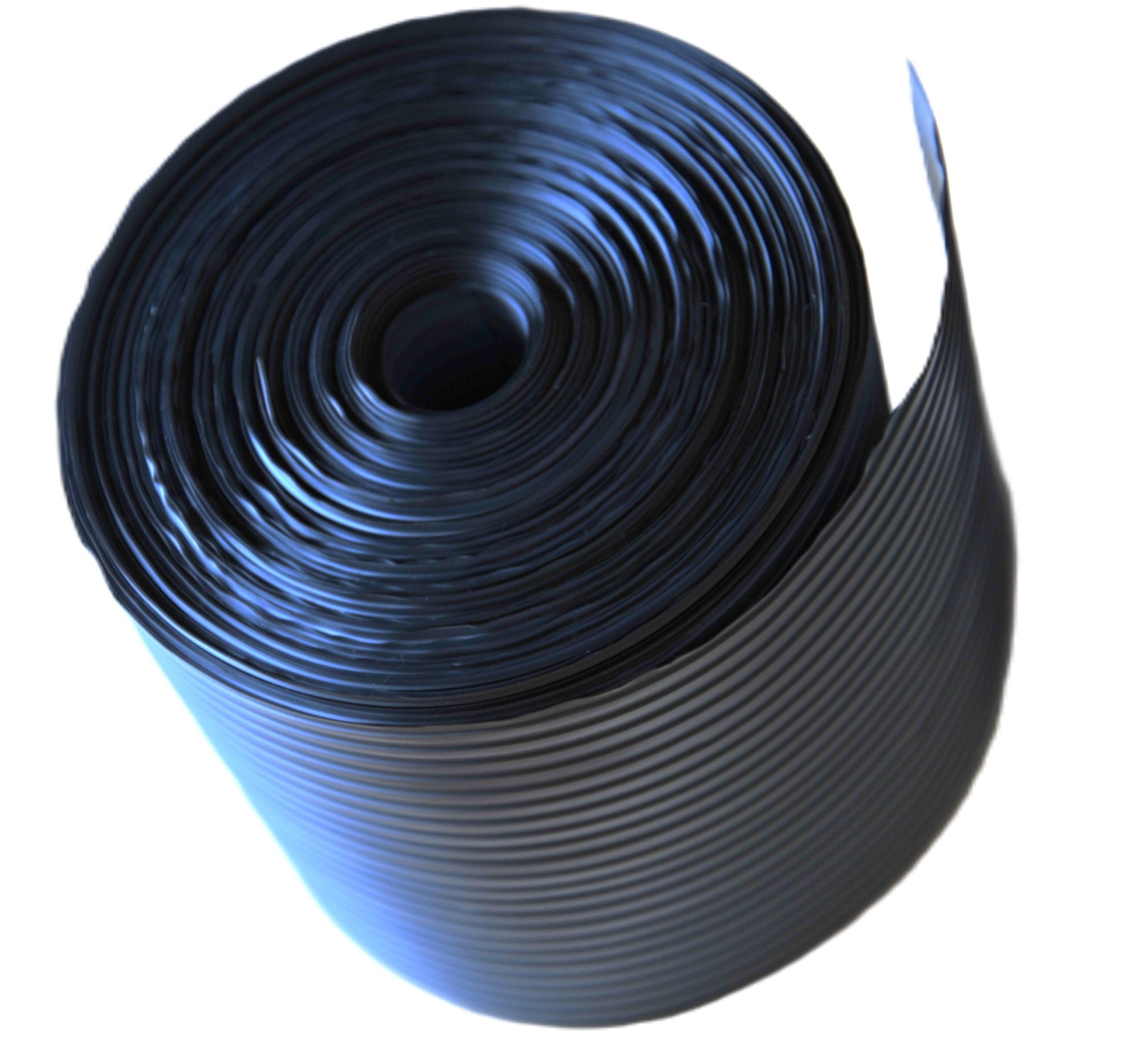

Available in roll form
Low electrical resistance
High puncture strength with thin backwebs
High porosity for lower electrical resistance
Excellent for high under-hood temperature applications
L
| Separator Property | Units | Type1 |
| Width | mm | 158mmx20Ribs |
| Backweb Thickness±0.030 | mm | 0.200-0.250 |
| Thickness with rib | mm | 1.0±0.05 |
| Oil content | ％ | 14.53 |
| Electrical Resistance | Ω.dm2 | 0.00044 |
| Elongation CMD | ％ | 445.32 |
| Porosity | ％ | 61.44 |
| Acid Weight Loss ≤4.0 | ％ | 3.2 |
| Dimension Stability ≤1.0 | ％ | 0.95 |
| Oxidation Stability (20H) | ％ | 398.6 |
| Fe Content | ％ | 0.0022 |
| CI Content | ％ | 0.003 |
| Moist Content | ％ | 1.77 |
| Puncture Resistance | N | 10.65 |
